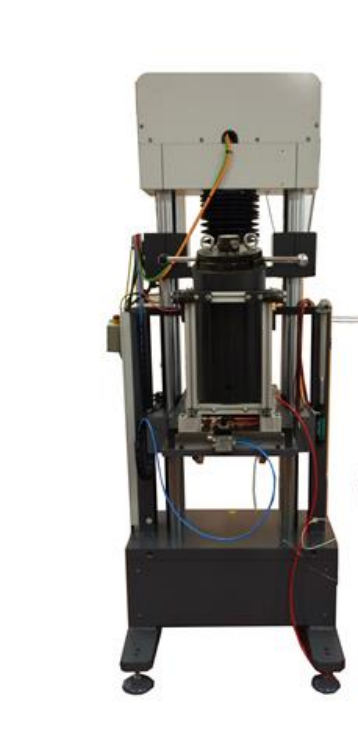

Model: RTCTS-2000

HTHP Rock Triaxial Compression Test System is used to test rock properties at different axial and radial pressure.

Besides conventional triaxial compression test, there are some option model: permeability testing model, hydraulic fracturing model, Acoustic Emission model, acoustic testing and so on.

Specifications:

• Maximum Loading Capacity: 1000KN or 2000 KN
• Loading Frame Stiffness: 2500 KN/mm
• Maximum Test Pressure: 150MPa or 200MPa
• Maximum Operating Temperature: 200 ℃
• Pressure accuracy:0.1%Fs
• Temperature accuracy:0.1°C
• Strain Control Accuracy: Better than ±1% FS
• Triaxial Load Indication Error: ±0.25% FS
• Acoustic Emission Sensors: 6 units
• Acoustic Emission Event Localization Software: 2D and 3D versions
• Acoustic Emission Source Localization Accuracy Error: ±2.0 mm
• Peak Sensitivity Error:  62 dB
• Operating Frequency: (125～750) kHz
• Resonant Frequency: 300 kHz
• Directivity: Better than ±1.5 dB
• Temperature Range: (-65～177) ℃
• Outer Diameter: 8 mm
• Length: 8mm
• Connector Type: Coaxial cable connection
